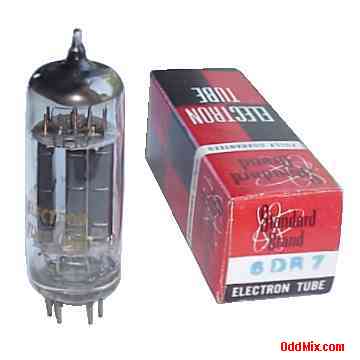

6DR7 High-Mu Triode, Low-Mu Triode Oscillator Amplifier RCA Electronic Vacuum Tube
The 6DR7 High-Mu Triode, Low-Mu Triode is used as combined vertical-deflection oscillator and vertical-deflection amplifier. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for antique radio or television restoration projects or to set up a private vacuum tube museum. It is a tested ORIGINAL RCA tube from the "good old times". Only one available.
Features: • 6DR7 High-Mu Triode, Low-Mu Triode • MFG: RCA - High quality Made in USA • Oscillator, mixer, IF, video, amplifier • Heater: 6.3 V, 0.9 A • Anode: 250 Vmax, 1.4 mAmax - unit one • Anode: 150 Vmax, 35 mAmax - unit two • Base: 9-pin miniature, all glass Notes: • NOS Tube • Standard Box • Unused • Price: $30 • One available • S/H included within continental US |
6DR7 Noval 9-Pin, Miniature, All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode 2 | Grid-2 | Grid-2 | Heater | Heater | Anode 1 | Grid-1 | Cathode 1 | Cathode 2 |
