6L6 RCA Radiotron Metal Beam Power Amplifier New Vintage Electron Tube

This is a genuine, vintage, metal RCA 6L6 beam power type electron tube. Developed for an output stage for AC/DC receivers as a class A amplifier. A beam tube can be used for many other circuits like oscillators, transmitters and RF amplifiers. Excellent for antique radio restoration projects or to set up a private vacuum tube museum. This used tube is tested, has a bit of rust on the steel envelope but otherwise it's in good working condition.

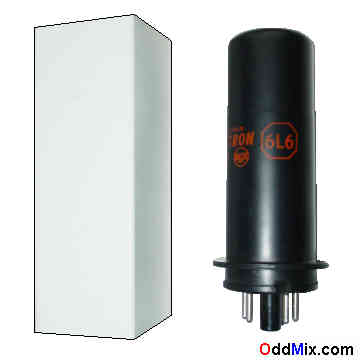

6L6 RCA Radiotron Metal Beam Power Amplifier Vintage Electron Tube [7 KB]
HARD TO FIND HISTORICAL METAL TUBE


Features:

6L6 Beam Power Electron Tube
MFG: RCA Radiotron Quality Made in USA
Class A amplifier, oscillator, transmitter
Heater: 6.3 V, 0.9 A
Plate: 360 Vmax, 72 mAmax - Zero signal
Plate Power: 19 Wmax
Base: 8-pin octal - Original Metal Tube

Notes:

NOS - New Old Stock tube Standard box
Unused Price: $100 One available
S/H included within continental US
6L6 Octal 8-Pin Metal Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8
Electrode Shield Heater Anode Grid-2 Grid-1 - Heater Cath G3
