OddMix IconOddMix VACUUM TUBE - 117Z3

117Z3 Full-Wave Rectifier High Voltage HV RCA Radiotron Electronic Replacement Tube

This is a genuine, vintage, discontinued RCA Radiotron 117Z3 Half Wave Rectifier electronic tube. These 7-pin miniature all glass tubes typically used as Full-Wave Rectifiers to provide anode voltage for television (TV), photomultiplier and special purpose circuits. Useful for restoration projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed, excellent condition.

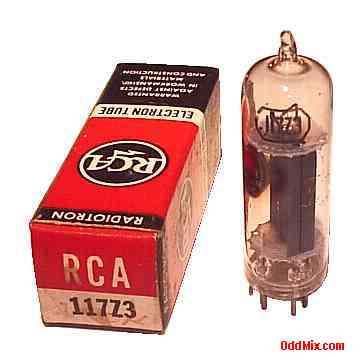

117Z3 RCA Radiotron Full-Wave Rectifier High Voltage HV Electronic Replacement Tube [11 KB]


Half Wave HV Rectifier
RCA Radiotron Quality Made in USA
Heater: 117 V, 0.04 A
Plate: 330 Vmax, 540 mAmax
Base: 7-pin all glass miniature


NOS - [New Old Stock] tube Original box
Unused Price: $15 One available
S/H included within continental US
117Z3 Miniature 7-pin Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7
Electrode IC NC Heater Heater Anode Cathode NC
NC=NCection, IC=Internal Connection - Do NOT Use
