OddMix IconOddMix VACUUM TUBE - 12AZ7A

12AZ7A High-Mu Twin Triode Sylvania Vacuum Electronic Tube RF Oscillator Amplifier

The 12AZ7A High-Mu Twin Triode is used for direct-coupled cathode-drive rf amplifier circuits of vhf television tuners and RF amplifier applications. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Excellent for antique radio restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

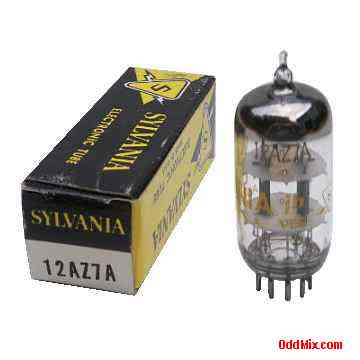

12AZ7A Sylvania High-Mu Twin Triode RF Oscillator Amplifier Electronic Vacuum Tube (10 KB)
HARD TO FIND - HISTORICAL TUBE

Features:

12AZ7A High-Mu Twin Triode Electronic Tube
MFG: Sylvania Quality Made in USA
Oscillator, mixer, RF amplifier
Heater: 12.6/6.3 V, 0.225/0.45 A
Anode: 300 Vmax, 10 mAmax, 2.5 Wmax - class A
Base: 9-pin noval, miniature all glass

Notes:

NOS - [New Old Stock] tube Original box
Unused - Price: $40 - One available
S/H included within continental US
12AZ7A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode 2 Grid 2 Cath 2 Heater 2 Heater 1 Anode 1 Grid 1 Cath 1 Heater-Ctr
