OddMix IconOddMix VACUUM TUBE - 12BZ7

12BZ7 High-Mu Twin Triode Philco Electronic Tube

This is a genuine, vintage Philco 12BZ7 Hi-Mu Twin Triode tube. It is made for FM and television applications. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers. Useful for antique radio restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

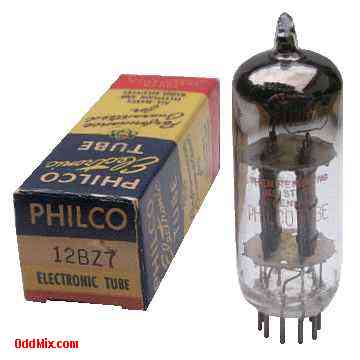

12BZ7 Philco High-Mu Twin Triode Discontinued Electronic Tube (11 KB)


12BZ7 Hi-Mu Twin Triode Electronic Tube
MFG: Philco High quality Made in USA
Audio amplifier, oscillator, mixer, IF, video
Heater: 12.6/6.3 V, 0.15/0.3 A
Anode: 300 Vmax, 2.5 mAmax, 1.5 Wmax - each unit
Discontinued Special Collectible Tube
Base: 9-pin miniature, all glass


NOS - [New Old Stock] tube Original box
Unused - Price: $40 - One available
S/H included within continental US
12BZ7 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Anode T1 Grid-1 T1 Cath T1 Heater Heater Anode T2 Grid 2 T1 Cath T2 Int Shield
