OddMix IconOddMix VACUUM TUBE - 17JZ8

17JZ8 Medium-Mu Triode, Beam-Power-Tube Magnavox Vacuum Electron Tube

This is an original Magnavox 17JZ8 Medium-Mu Triode, Beam-Power-Tube electronic vacuum tube. This is a collectible but fully useable item with an all glass 12 pin duodekar pinout. This tube useable in power RF circuits, oscillators, AF power amplifiers and in VHF television (TV) and FM receivers.A Beam-Power Tube can be used for many other special purpose circuits like transmitters and power amplifiers. Useful for antique radio or television restoration projects or to set up a private vacuum tube museum. It is a rare, used, tested tube without it's box in good working condition. Only one available.

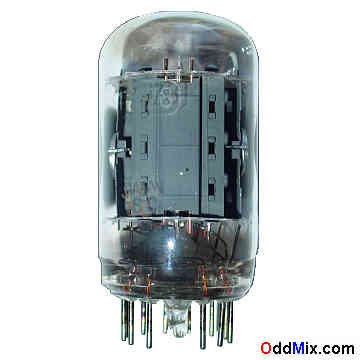

17JZ8 Medium-Mu Triode Beam-Power Tube Magnavox Electron Vacuum Tube [10 KB]
HARD TO FIND - HISTORICAL TUBE

Features:

17JZ8 Medium-Mu Triode, Beam-Power-Tube
MFG: RCA Magnavox Quality Made in USA
Amplifier, Oscillator
Heater: 16.8 V, 0.45 A
Plate: 150/120 Vmax - Triode/Beam Pwr
Plate Current: 5.5/46 mAmax - Triode/Beam Pwr
Base: 12-pin, all glass, duodecar

Notes:

OEM tube - Tested Without box
Price: $30 One available
S/H included within continental US
17JZ8 12-Pin Duodecar All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9 10 11 12
Electrodes Heater Anode T NC Anode B NC G1 B G1 B G2 B Cath G3 B Grid T Cath T Heater
