OddMix IconOddMix VACUUM TUBE - 25DQ6

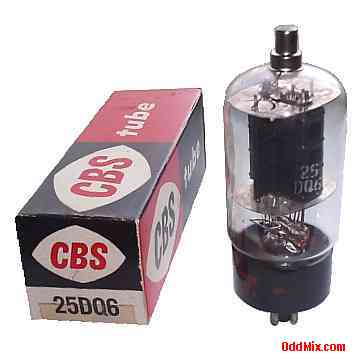

25DQ6 Beam Power Tube CBS Vacuum Electronic Tube Vintage Amplifier

This is an original, rare, vintage CBS 25DQ6 Beam Type Electronic Tube. Developed for horizontal deflection power amplifier use in interrier televisions, radio receivers and audio amplifiers. A beam tube with a heater-cathode and three grids can be used for many other special purpose circuits like oscillators and RF amplifiers. Useful for SW QRP transmitters, antique radio restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition. Only one available.
25DQ6 Beam Tube Power Amplifier Glass Octal CBS Vintage Electronic Vacuum Tube [10 KB]
HARD TO FIND - HISTORICAL TUBE

Features:

25DQ6 Beam Power Tube
• MFG: CBS • High quality Made in USA
• Power Amplifier, Oscillator
• Heater: 25 V, 0.3 A
• Plate: 600 Vmax, 150 mAmax
• Power: 15 Wmax - Class A
• Base: Octal, Glass

Notes:

NOS - [New Old Stock] tube • Original box
• Unused • Price: $40 • One available
S/H included within continental US
25DQ6 Octal 8-Pin All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 Cap
Electrodes NC Heater NC Grid-2 Grid-1 - Heater Cath G3 Anode
