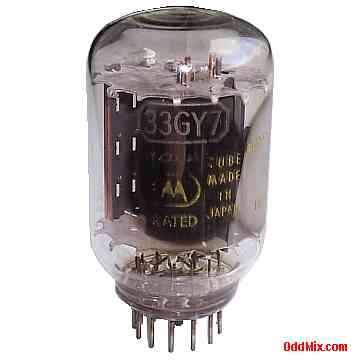

33GY7 Diode, Beam-Power-Tube Motorola Golden Vacuum Electron Tube AF Amplifier
This is an original Motorola 33GY7 Diode, Beam-Power-Tube electronic vacuum tube. This is a rare item with an all glass 12 pin duodekar pinout. This tube useable in damper service, horizontal deflection, power RF circuits, oscillators, AF power amplifiers and in VHF television (TV) and FM receivers. A Beam-Power Tube can be used for many other special purpose circuits like transmitters and power amplifiers. Useful for antique radio or television restoration projects or to set up a private vacuum tube museum. It is a rare, used, tested tube without it's box in good working condition. Only one available.
Features: • Diode, Beam-Power-Tube • MFG: Motorola Golden • High quality Made in USA • Power Class A amplifier, Oscillator • Heater: 33.6 V, 0.45 A • Plate: 420/540 Vmax - Diode/Beam Pwr • Plate Current: 810/540 mAmax - Diode/Beam Pwr • Base: 12-pin, all glass, duodecar Notes: • OEM tube • Without box • Used • Price: $25 • One available • S/H included within continental US |
33GY7 12-Pin Duodecar All Glass Electronic Vacuum Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Electrodes | Heater | Anode D | IC | Cath D | Anode P | IC | IC | Cath G3 | G-1 P | G-1 P | G-2 P | Heater |
