8AW8A High-Mu Triode, Sharp-Cutoff Pentode Electronic Vacuum Tube Japan

This is an original Japan 8AW8A High-Mu Triode, Sharp-Cutoff Pentode electronic tube. This tube useable in a wide variety of applications, VHF television and FM receivers. A High-Mu triode is useable for many other special purpose circuits, oscillators, power supplies, guitar, audio and RF amplifiers. Excellent for antique, cathedral radio or television restoration, projects, or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, excellent condition.

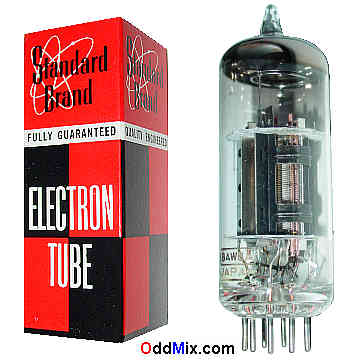

8AW8A Japan High-Mu Triode Sharp-Cutoff Pentode Electronic Tube [18 KB]


8AW8A High-Mu Triode, Sharp-Cutoff Pentode
MFG: Japan High quality Made Japan
Amplifier, oscillator
Heater: 8.4 V, 0.45 A
Plate330/330 Vmax, 4.0/15 mAmax - Triode/Pentode
Plate Dissipation: 1.1/3.75 Wmax - Triode/Pentode
Base: 9-pin noval, miniature, all glass


NOS - New Old Stock tube Standard box
Unused - Price: $30 - One available
S/H included within continental US
8AW8A Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Cathode T Grid-1 T Anode T Heater Heater Cath, G3 P Grid-1 P Grid-2 Anode P
