8EB8/8GN8 High-Mu Triode, Sharp-Cutoff Pentode Raytheon Amplifier Electron Tube

This is an original Raytheon 8EB8/8GN8 High-Mu Triode, Sharp-Cutoff Pentode electronic vacuum tube. This tube is useable for replacement part in VHF television and FM receivers. Substitute - with filament voltage change - 6AB8 and EU16. A High-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for antique radio or television restoration projects, circuit reseach, experimentation, audio amplifiers, for a single tube regulated, adjustable laboratory power supply or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed condition.

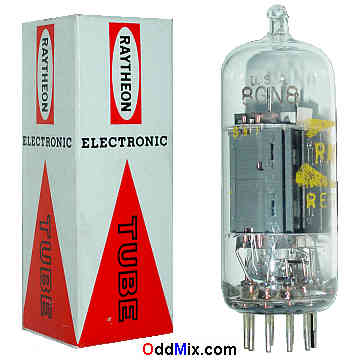

8EB8/8GN8 High-Mu Triode Sharp-Cutoff Pentode Amplifier Raytheon Electron Vacuum Tube [15 KB]


8EB8/8GN8 High-Mu Triode, Sharp-Cutoff Pentode
MFG: Raytheon Quality Made in USA
Amplifier, Oscillator
Heater: 8 V, 0.6 A Substitute 6AB8, EU16 - Fil V!
Plate: 330/350 Vmax, 1.0/5.0 Wmax - Triode/Pentode
Base: 9-pin noval, miniature, all glass


NOS - New Old Stock tube Original box
Unused - Price: $35 - One available
S/H included within continental US
8EB8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Cath T Grid T Anode T Heater Heater Cath G3 ISH Grid-1 P Grid-2 Anode P
