OddMix IconOddMix VACUUM TUBE - 8FQ7/8CG7

8FQ7/8CG7 Medium-Mu Twin Triode GE Vacuum Electronic Tube Video Amplifier

The GE 8FQ7/8CG7 Medium-Mu Twin Triode is used for direct-coupled cathode-drive RF amplifier in television VHF tuner applications. The triodes also works well for AM/FM and general purpose oscillator circuits and for push-pull cathode-drive RF amplifiers.Excellent for antique radio or television restoration projects, circuit reseach, experimentation, audio amplifiers, for a single tube regulated, adjustable laboratory power supply or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, boxed condition.

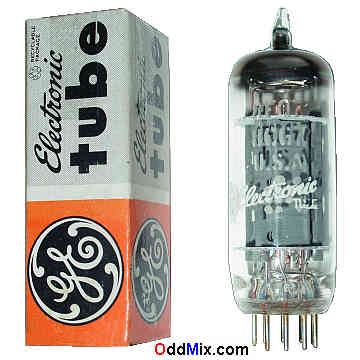

8FQ7/8CG7 Medium-Mu Twin Triode Video Amplifier GE Electronic Vacuum Tube [17 KB]


8FQ7/8CG7 Medium-Mu Twin Triode
MFG: GE High quality Made in USA
Oscillator, Mixer, IF, Video, Amplifier
Heater: 8.4 V, 0.45 A
Anode: 300 Vmax, 2.7 Wmax - Each Side
Base: 9-pin noval, miniature, all glass


NOS - [New Old Stock] tube Original box
Unused - Price: $35 - One available
S/H included within continental US
8FQ7/8CG7 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Anode T1 G-1 T1 Cath T1 Heater Heater Anode T2 G-1 T2 Cath T2 Int Shld
