8LT8 Twin Diode-Sharp-Cutoff Pentode Admiral Vacuum Electron Amplifier Tube

This is an original Admiral 8LT8 Twin Diode-Sharp-Cutoff Pentode electronic tube. This tube useable as replacement part in VHF television and FM receivers as IF frequency amplifiers. A twin diode may be used for many other special purpose circuits. Excellent for antique radio or television restoration projects, replacement part, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, boxed, excellent condition.

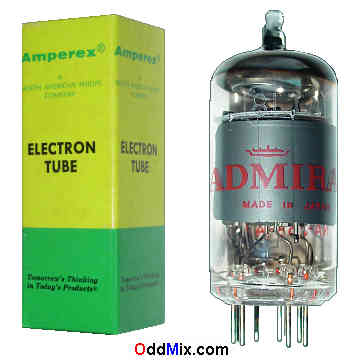

8LT8 Twin Diode-Sharp-Cutoff Pentode Admiral Amplifier Electron Vacuum Tube [13 KB]


8LT8 Twin Diode-Sharp-Cutoff Pentode
MFG: Admiral High quality Made in Japan
Class A amplifier, Oscillator, RF Circuits
Heater: 8.1 V, 0.45 A
Plate: 330 Vmax - 3.1 Wmax, Pentode
Base: 9-pin noval, miniature, all glass


NOS - [New Old Stock] tube Original Amperex box
Unused - Price: $25 - One available
S/H included within continental US
8LT8 Noval 9-Pin Miniature All Glass Electronic Vacuum Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Cath, G3 P Grid-2 Anode P Heater Heater Anode D2 Cath D Anode D1 Grid-1 P
