807 Beam Power Electron Tube Sylvania SW VFO AF RF Amplifier QRP Transmitter Modulator

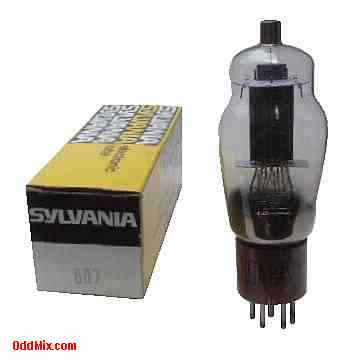

This is an original, sturdy 807 Beam Power Triode AF RF Amplifier, Oscillator, Modulator Sylvania electron tube. It has a five contact socket with an anode pin connection. This is a popular tube for radio amateurs and it's also a vacuum tube. The 807 is heather-cathode type used as af power amplifier and modulator and rf power amplifier oscillator tube in transmitters. May be used with full input up to 60 MHz and reduced input up to 125 MHz. Useful for amature radio and ham special projects or to set up a private vacuum tube museum. It is unused, tested condition. First come first serve only one available!
Features: • Type: 807 Beam Power Tube • MFG: Sylvania • High quality Made in USA • AF, RF, Amplifier, Oscillator, Modulator • Heater: 6.3 V, 0.9 A • Plate Voltage: 600 Vmax - Class C RF Amplifier • Plate Current: 100 mAmax - Class C RF Amplifier • Plate Input: 60 Wmax - Class C RF Amplifier • Base: 5-pin with anode pin Notes: • Unused, tested • Price: $25 • Original box • Two available - Other tube is RCA • S/H included within continental US |
807 Pental 5-Pin Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | Cap |
Electrode | Heater | Grid 2 | Grid 1 | Cath G3 | Heater | Anode |
