OddMix IconOddMix VACUUM TUBE - E2787PDW

E2787PDW Cathode Ray Tube CRT Toshiba Oscillograph Magnetic Deflection

This is a flat face Toshiba E2787PDW Cathode Ray Tube (CRT) oscillograph type, magnetic deflection. This tube is useful to construct oscilloscopes, miniature TV sets, radar scopes, laboratory measuring instruments and other home electronics project which require a visual display. This tube is a hard to find replacement for amateur or commercial built measuring devices. First come first serve only one available!

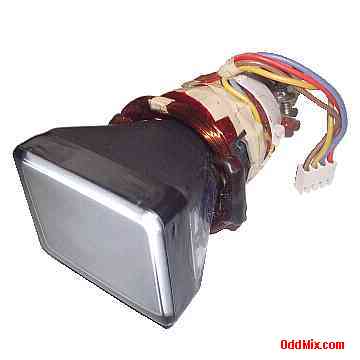

E2787PDW Cathode Ray Tube CRT Oscillograph Toshiba Magnetic Deflection [8 KB]
DIFFICULT TO FIND - SMALL CRT TUBE

Features:

E2787PDW Oscillograph Type CRT
MFG: Toshiba Corp.
Flat face tube - Magnetic Deflection
Oscillograph, TV, hobby use
Original deflection yoke included
Base: 7-pin miniature
CRT Face Size: 58 W x 44 H [mm]
Tube Assembly Size: 85 x 60 x 155 L [mm]
Tube Assembly Weight: 368 [gm]

Notes:

Used, working Price: $50 One available
S/H included within continental US
