OddMix IconOddMix VACUUM TUBE - ECC83/12AX7

ECC83/12AX7 High-Mu Twin Triode Telefunken Vacuum Electron Tube Audio Amplifier

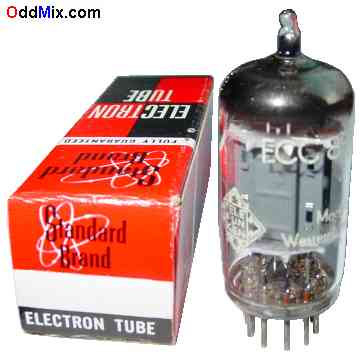

This is a genuine, vintage, rare, historical, discontinued Telefunken ECC83/12AX7 High-Mu Twin Triode Electron Tube in a Standard box. This is a West German made collector's special vacuum tube. Typically used as phase inverter or resistance-coupled amplifier in radio equipment and receivers. Excellent for those antique radio restoration projects or to set up a private vacuum tube museum. It is unused, boxed, and excellent condition. First come first serve, one available!
ECC83/12AX7 High-Mu Twin Triode Audio Amplifier Telefunken Vacuum Electron Tube [13 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

ECC83/12AX7 High-Mu Twin Triode
AF Amplifier, Oscillator
MFG: Telefunken Made in West Germany
Heater: 12.6/6.3 V, 0.15/0.3 A Series/Parallel
Plate: 330 Vmax - Triode Class A
Plate Dissipation: 1.2 Wmax - Each Triode Class A
Base: 9-pin, all glass Substitute: 12AX7

Notes:

NOS - [New Old Stock] tube Standard box
Unused Price: $50 each One available
S/H included within continental US
ECC83 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode 1 Grid-1 Cath 1 Heater Heater Anode 2 Grid-2 Cath 2 Fil-Cntr
