ECC86 Frame-Grid Twin Triode Valvo Low Voltage Amplifier Vacuum Electronic Tube RF

This is a genuine, original ECC86 Valvo Frame-Grid Twin Triode RF Low Voltage electronic tube. Developed for RF low voltage applications - combined detector, amplifier, oscillator, self-oscillating mixer use in automobile receivers. This tube can be directly operated by a storage battery - no high voltage supply is necessary - thus lend itself for safe study. Excellent for replacement, antique radio, instrument restoration projects, experimentation, circuit research or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, excellent, collectible condition. First come first serve, only one of this rare, discontinued, historical vacuum tube available!

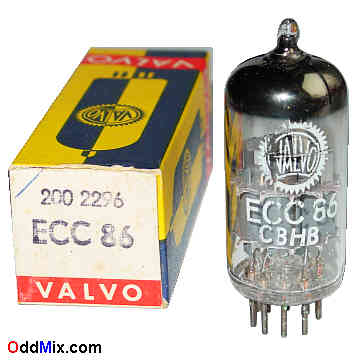

ECC86 Double High-Mu Triode RF Valvo Low Voltage Amplifier Vacuum Electronic Tube [15 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

ECC86 Frame-Grid Twin Triode RF
• RF Amplifier, Oscillator, Mixer
• MFG: Valvo • Quality Made in Germany
• Heater: 6.3 V, 330 mA • Low Voltage Tube
• Plate: 30 Vmax - 20 mAmax - 0.6 Wmax / Triode
• Base: 9-pin noval • Substitute: 6GM8

Notes:

NOS - [New Old Stock] tube • Original box
• Unused - Price: $60 - One available
S/H included within continental US
ECC86 6AQ8 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode 1 Grid-1 Cath 1 Heater Heater Anode 2 Grid-2 Cath 2 Shield
