ECH21 Triode, Heptode Tungsram Vacuum Electronic Tube

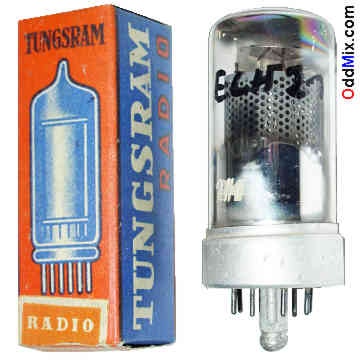

This is an original, Tungsram ECH21 Triode, Heptode electronic tube. Good subtitute is the ECH71, UCH21 - different filament voltage. This tube is designed for RF [Radio Frequency] but useable in AF [Audio Frequency] circuits. A heptode or a triode is useful for many other special purpose circuits like oscillators, RF amplifiers, multivibrators, blocking oscillator, replacement part, circuit research and experimentation or for antique radio, instrument, TV television restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, without box, excellent condition.
Features: • Triode, Heptode • RF & AF Amplifier, Oscillator, Mixer • MFG: Tungsram • High quality Made in Hungary • Heater: 6.3 V, 0.33 A • Substitute: UCH21 • Plate: 175/300 Vmax - 0.8/1.5 Wmax Triode/Heptode • Base: 8-pin loctal (with center) - all glass Notes: • NOS - [New Old Stock] tube • Without box • Unused - Price: $20 - One available • S/H included within continental US |
ECH21 Loctal 8-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Ctr |
Electrode | Heater | Anode H | Anode T | Grid-1 T | Grid-2,4 | Grid-1 H | Cath G3 G5 SH | Heater | Cath G3 G5 SH |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
