ECL80 High-Mu Triode, Sharp-Cutoff Pentode Telefunken Vacuum Electron Tube Amplifier

This is an original ECL80 High-Mu Triode, Sharp-Cutoff Pentode electronic tube. This tube is useable for replacement part in VHF television and FM receivers. Substitute 6AB8 and EU16. A High-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. Excellent for antique radio or television restoration projects, for a single tube regulated, adjustable laboratory power supply or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, without box, excellent condition.

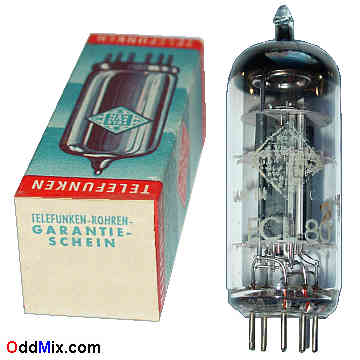

ECL80 High-Mu Triode Sharp-Cutoff Pentode Amplifier Telefunken Vacuum Electron Tube [15 KB]


ECL80 High-Mu Triode, Sharp-Cutoff Pentode
MFG: Telefunken - High quality Made in Germany
Amplifier, Oscillator, Power Applications
Heater: 6.3 V, 0.3 A Substitute: 6AB8
Plate: 200/400 Vmax Triode/Pentode
Plate Power: 1.0/3.5 Wmax Triode/Pentode
Base: 9-pin noval, all glass miniature


NOS - New Old Stock tube Without box
Unused Price: $40 One available
S/H included within continental US
ECL80 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode Anode T Grid T Cath SH Heater Heater Anode P Grid-3 Grid-2 Grid-1 P
