OddMix IconOddMix VACUUM TUBE - EF86

EF86 Medium-Mu Pentode Tungsram Vacuum Electron Tube AF Audio Amplifier

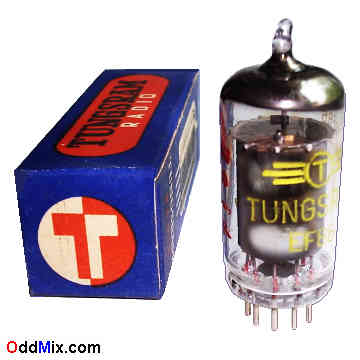

This is an original Tungsram EF86 Medium-Mu Pentode AF electron tube. Subtitutes are the 6BR7. The EF86 is a great hi-fi audio pentode. The tube is useable in television and radio, SW, FM receivers as an audio pre-amplifier. An AF pentode is useable for many other circuits, oscillators and amplifiers. Excellent for antique radio or television restoration projects, instruments or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
EF86 Medium-Mu AF Audio Amplifier Pentode Tungsram Vacuum Electron Tube [13 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

EF86 Medium-Mu Pentode AF
MFG: Tungsram - Quality Made in Hungary
AF Amplifier, Oscillator
Heater: 6.3 V, 200 mA
Plate: 300 Vmax, 1.0 Wmax
Base: 9-pin glass Substitute: 6BR7, PF86

Notes:

NOS - New Old Stock tube Without box
Unused - Price: $30 - One available
S/H included within continental US
EF86 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Grid-2 Shield Cathode Heater Heater Anode Shield Grid-3 Grid-1
