OddMix IconOddMix VACUUM TUBE - PCC189

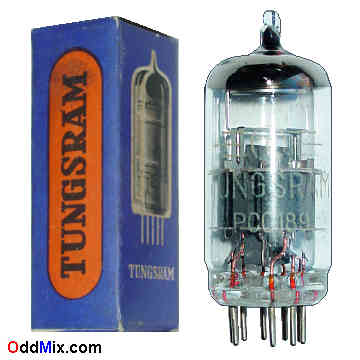

PCC189 Medium-Mu, Low Noise, Twin Triode Tungsram RF Amplifier Vacuum Electron Tube

This is a genuine, rare, vintage, historical, European type PCC189 High-Mu Low Noise Twin UHF Triode Electron Tube made in Hungary by Tungsram. Good subtitute - except for the filament voltage - are the ECC189 and 7ES8. Typically used as cascode RF, UHF amplifier, electronic equipment, radios and receivers. Excellent for antique FM radio and TV [television] restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, in excellent condition. First come first serve. One available!
PCC189 Medium-Mu, Low Noise Twin Triode Tungsram RF Amplifier Vacuum Electron Tube [15 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

PCC189 Medium-Mu, Low Noise, Twin Triode
RF Amplifier Cascode, Class "A" - Oscillator
MFG: Tungsram High quality Made in Hungary
Heater: 7.2 V, 300 mA S: 12.5 mA/V
Plate: 130 Vmax 22 mA - Triode Class A
Plate Dissipation: 1.8 Wmax - Each Triode Class A
Base: 9-pin, all glass Substitute: ECC189, 7ES8

Notes:

NOS - [New Old Stock] tube Without box
Unused Price: $25 One available
S/H included within continental US
PCC189 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode 1 Grid-1 Cath 1 Heater Heater Anode 2 Grid-2 Cath 2 Int Shld
