OddMix IconOddMix VACUUM TUBE - PCC84

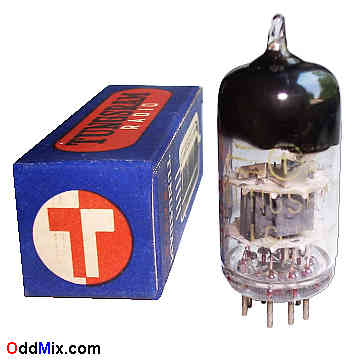

PCC84 High-Mu Twin Triode Tungsram Vacuum Electron Tube 2 RF UHF Amplifier

This is a genuine, rare, vintage, historical, European type PCC84 High-Mu Twin UHF Triode Electron Tube made in Hungary by Tungsram. Good subtitute - except for the filament voltage - are the ECC84 and 7AN7. Typically used as cascode RF, UHF amplifier, electronic equipment, radios and receivers. Excellent for antique FM radio and TV [television] restoration projects or to set up a private vacuum tube museum. It is NOS tube - New Old Stock, unused, in excellent condition. First come first serve. Only one available!
PCC84 High-Mu Twin Triode Tungsram RF UHF Amplifier Vacuum Electron Tube [13 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

PCC84 High-Mu Twin Triode UHF Tube
• RF Amplifier Cascode, Class "A" - Oscillator
• MFG: Tungsram High quality Made in Hungary
• Heater: 7.2 V, 300 mA
• Plate: 200 Vmax - Triode Class A
• Plate Dissipation: 2.5 Wmax - Each Triode Class A
• Base: 9-pin, all glass • Substitute: ECC84, 7AN7

Notes:

NOS - [New Old Stock] tube • Without box
• Unused • Price: $20 • One available
S/H included within continental US
PCC84 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Cath 1 Grid-1 SH Anode 1 Heater Heater Grid-2 Cath 2 Cath 2 Anode 2
