OddMix IconOddMix VACUUM TUBE - PLC200

PLC200 Triode, Pentode Tungsram Vacuum Electronic Tube 1 Amplifier Oscillator

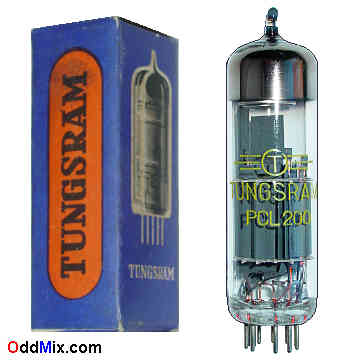

This is an original Tungsram PLC200 Triode, Pentode combination electron tube in a ten pin - decal - all glass envelope. This tube - were truly a latest - addition to the vacuum tube family of devices. It was made for use as a complete video amplifier in TV [televison] sets. Because of the tube's high bandwith, it is an excellent choice to build a Hi-Fi audio amplifier. A triode-pentode combination may be used for many other special purpose circuits, oscillators and AF amplifiers. Excellent for replacent part, antique radio or television restoration, projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
PLC200 Triode, Pentode Amplifier Oscillator Tungsram Vacuum Electronic Tube 1 [14 KB]


PLC200 Triode-Pentode - Decal Vacuum Tube
MFG: Tungsram - High quality Made in Hungary
AF, HF Amplifier, Oscillator, Mixer
Heater: 15.5 V, 300 mA S: 5, 28 mA/V - Tri/Pent
Plate: 250/250 Vmax - 1.7/6 W - Triode/Pentode
Plate Current: 15/60 mAmax - Triode/Pentode
Base: 10-pin Decal, all glass Substitute: ECL200


NOS - [New Old Stock] tube Without box
Unused - Price: $30 - One available
S/H included within continental US
PCL200 Decal 10-Pin All Glass Miniature Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9 10
Electrodes Anode T Grid-1 T Cath T C G3 SH P Heater Heater Anode P Grid-2 P Grid-1 P Grid-2 P
