PCL85 Medium-Mu Triode Sharp-Cutoff Pentode Tungsram Vacuum Tube 2 VHF FM

This is an original Tungsram PCL85 Medium-Mu Triode Sharp-Cutoff Pentode electron tube. Good subtitute - except for the filament voltage - are the ECL85. The tube designed for TV [television] and FM receivers. A Medium-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. This compound tube has an ECC83 like single triode and an EL84 like output amplifier thus it is exceedingly useful for a single channel audio or guitar amplifier. Also excellent for antique radio or television restoration, radio amateur projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.

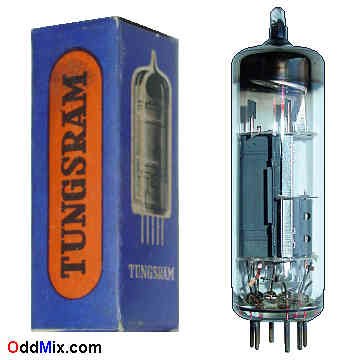

PCL85 Medium-Mu Triode Sharp-Cutoff Pentode VHF FM Tungsram Vacuum Electronic Tube 2 [14 KB]


PCL85 Triode, Pentode
MFG: Tungsram - Made in Hungary quality
AF, RF Amplifier, Oscillator, Mixer
Heater: 18.0 V, 300 mA S: 5.5/7.5 mA/V - T/P
Plate: 100/50 Vmax. 10/200 mAmax - Triode/Pentode
Power: 0.5/8 Wmax - Triode/Pentode
Base: 9-pin glass Substitute: ECL85


Type numbers faint or not visible Without box
Unused - Price: $30 - One available
S/H included within continental US
PLC85 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Anode T Grid-1 T Cath T Heater Heater Anode P Grid-2 P Cath G3 Sh Grid-1 P
