PCL85 Medium-Mu Triode Sharp-Cutoff Pentode Tungsram Vacuum Tube 3 VHF FM

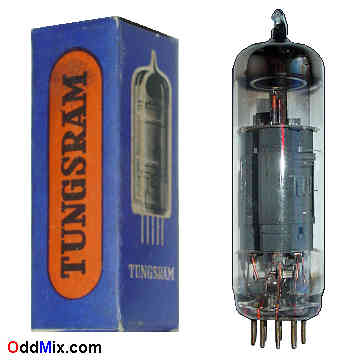

This is an original Tungsram PCL85 Medium-Mu Triode Sharp-Cutoff Pentode electron tube. Good subtitute - except for the filament voltage - are the ECL85. The tube designed for TV [television] and FM receivers. A Medium-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. This compound tube has an ECC83 like single triode and an EL84 like output amplifier thus it is exceedingly useful for a single channel audio or guitar amplifier. Also excellent for antique radio or television restoration, radio amateur projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
Features: • PCL85 Triode, Pentode • MFG: Tungsram - Made in Hungary quality • AF, RF Amplifier, Oscillator, Mixer • Heater: 18.0 V, 300 mA • S: 5.5/7.5 mA/V - T/P • Plate: 100/50 Vmax. 10/200 mAmax - Triode/Pentode • Power: 0.5/8 Wmax - Triode/Pentode • Base: 9-pin glass • Substitute: ECL85 Notes: • Type numbers faint or not visible - Without box • Unused - Price: $30 - One available • S/H included within continental US |
PLC85 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Electrodes | Anode T | Grid-1 T | Cath T | Heater | Heater | Anode P | Grid-2 P | Cath G3 Sh | Grid-1 P |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
