PCL86 Low-Mu Triode Sharp-Cutoff Pentode Tungsram Vacuum Tube 1 AF Audio

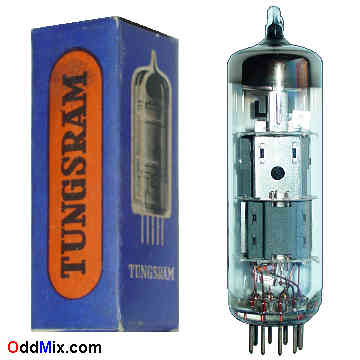

This is an original Tungsram PCL86 Medium-Mu Triode Sharp-Cutoff Pentode electron tube. Good subtitute - except for the filament voltage - are the ECL86. The tube designed for audio service for TV [television] and FM receivers. A Low-Mu triode can be used for many other special purpose circuits like oscillators and RF amplifiers. This compound tube has an ECC83 like single triode and an EL84 like output amplifier thus it is exceedingly useful for a single channel audio or guitar amplifier. Also excellent for antique radio or television restoration, radio amateur projects or to set up a private vacuum tube museum. It is a NOS tube - New Old Stock, unused, excellent condition.
PCL86 Medium-Mu Triode Sharp-Cutoff Pentode VHF FM Tungsram Vacuum Electronic Tube [14 KB]


PCL86 Triode, Pentode - AF Audio
MFG: Tungsram - Made in Hungary quality
AF, RF Amplifier, Oscillator, Mixer
Heater: 14.5 V, 300 mA S: 1.6/10.5 mA/V - T/P
Plate: 230/230 Vmax. 1.2/39 mAmax - Triode/Pentode
Power: 0.5/9 Wmax - Triode/Pentode
Base: 9-pin glass Substitute: ECL86


NOS - [New Old Stock] tube Original box
Unused - Price: $40 - One available
S/H included within continental US
PLC86 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrodes Grid-1 T Cath T Grid-2 P Heater Heater Anode P Cath G3 Sh Grid-1 P Anode T
