OddMix IconOddMix VACUUM TUBE - PL82

PL82 Power Pentode Tungsram Vacuum Electronic Tube AF RF SW Amplifier Oscillator

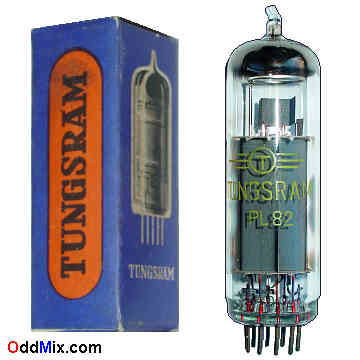

This is an original, Tungsram PL82 Power Pentode electronic tube. Nearest good subtitute is the Brimar 16A5 or a 16L40. This tube is designed for RF [Radio Frequency] and AF [Audio Frequency] amplifier use. Excellent part for replacement, antique radio, instrument or television restoration, circuit research, SW [Short Wave] radio work or experimentation. It is a NOS - New Old Stock tube - without box, excellent condition.
PL82 Power Pentode Tungsram AF RF SW Amplifier Oscillator Vacuum Electronic Tube [14 KB]
HARD TO FIND - EUROPEAN VACUUM TUBE

Features:

Power Pentode - Excellent for Transmitters
DC & AF Amplifier, Oscillator
MFG: Tungsram - High quality Made in Hungary
Heater: 21.5 V, 0.3 A Substitute: 16A5, 16L40
Va(peak): 170 Vmax - Ik: 75mAmax
Plate: 450 Vmax - 9 Wmax G2: - 2.5 Wmax
Base: 9-pin all glass noval

Notes:

NOS - [New Old Stock] tube Without box
Unused - Price: $40 - One available
S/H included within continental US
PL82 Noval 9-Pin Miniature All Glass Vacuum Electronic Tube Electrode Connections
PIN # 1 2 3 4 5 6 7 8 9
Electrode I.C. Grid-1 Cath, G3 Heater Heater I.C. I.C. Anode Grid-2
