OddMix VACUUM TUBE - RL12P35 |

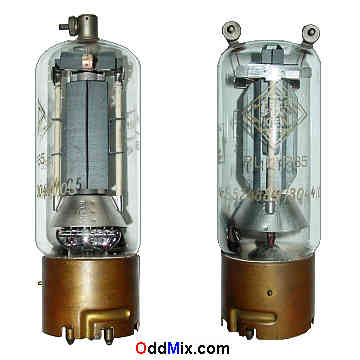

RL12P35 Telefunken RF Power Pentode Wehrmacht Military Transmitter Electron Tube
This is an original, sturdy, Wehrmacht RL12P35 CRC Power Pentode made in Holland by Telefunken. This military tube is made with a five contact, bayonet socket and an anode and a supressor grid [G3} cap. Similar tubes were made and used during WWII, for tanks, aircrafts, naval and other radio sets. Developed to use for power transmitter applications for the Germany military also found it's use in industial equipment. Tube Number: SŤ52 4889/3044/05
The RL12P35 has a strong emitter that uses 12.6 Vdc, 630ą50 mA for it's inirect, oxyd coated cathode heater. Excellent war memorabilia, good for amature and ham radio projects, donating it to a science place for tax credit or to set up a private vacuum tube museum. This item is unused and kept for 70 years, in excellent condition. First come first serve, as only one available!
The RL12P35 has a strong emitter that uses 12.6 Vdc, 630ą50 mA for it's inirect, oxyd coated cathode heater. Excellent war memorabilia, good for amature and ham radio projects, donating it to a science place for tax credit or to set up a private vacuum tube museum. This item is unused and kept for 70 years, in excellent condition. First come first serve, as only one available!
Features: RL12P35 RF Power Pentode Transmitter MFG: Telefunken Made in Holland Tube Number: S52 4889/3044/05 Filament Voltage: 12.6 Vac, 630ą50 mA Plate: 800 Vmax, 90 mAmax Power: 35 Watts Cathode Current: 150mAmax Base: 5-pin bayonet with anode & G2 pin Notes: Vintage, collectible WWII item Made for Wehrmacht Unused Price: $60 Only one available S/H included within continental US |
RL12P35 5-Pin Bayonette Vacuum Electronic Tube Electrode Connections
PIN # | 1 | 2 | 3 | 4 | Center | Shield | Cap A | Cap B |
Electrode | Grid 2 | Heater | Grid 1 | Heater | Grid 3 | Cathode | Anode | Grid 3 |
Only one item available unless otherwise indicated Click the credit card pictures left to order E-Mails always answered unless return e-mail is blocked |
