KiloWatt Meter Weston Model 432 6 kW FS Analog Movement Reference

This genuine Weston Instruments Model 432 KiloWatt Meter 6 kilo Watt FS (Full Scale) precision meter has a large, easy to read parallax free mirror scale window, five large brass terminals, and a jeweled analog mechanical meter movement. The robust design and dependable Weston mechanical meter movement makes this instrument practically indestructible. Page is for reference only - Item is no longer available!

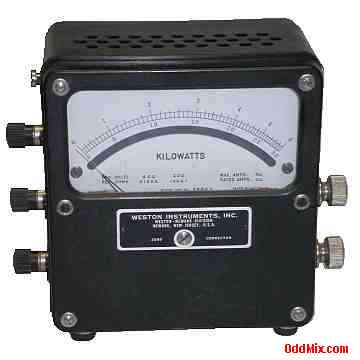

KiloWatt Meter 6 kW FS Precision Analog Movement Weston Instruments Model 432 [9 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:
KiloWatt Meter Model 432
MFG: Weston Instruments Company
Two ranges: 3 and 6 kiloWatt Full Scale
Input Current Max: 30 Amps
Input Current Rated: 20 Amps
Max Input Voltage: 400V R=21322 Ohms
Max Input Voltage: 200V R=10661 Ohms
Frequency Input: 25-125 Cycles
Mirrored Scale for parallax free readout
Large movement window 4 W x 2 H [in]
5/8 in Dia knurled brass terminals
Size: 6-1/2 W x 5-3/8 H x 3-1/2 D [inches]
Made in USA

Notes:
No longer Available
Data For Reference Only
