Pulse Transformer Raytheon U-8198 Shielded Assembly US Navy Military Surplus

This magnetically shielded pulse transformer assembly was made by Raytheon Mfg. Co. for the US Navy. It is a quality component with many other uses in the home laboratory. It has four windings. Two of them 100 turns, and two 50 turns, all made with 36 gage wire on quality iron core. All five transformers are unused and in excellent condition. On some units, the originally shiny tin surface of the enclosure has turned a bit dull in color. The robust design and sturdy construction makes this transformer assembly practically indestructible. For a replacement part, special hobby projects, or other applications this shielded transformer assembly would be a good choice. It is hard to find surviving new transformers in this nice condition. Five available.

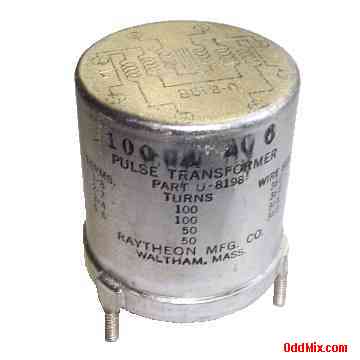

Pulse Transformer Shielded Assembly US Navy Raytheon U-8198 Military Surplus [8 KB]
SPECIAL ONE OF A KIND ITEM

Features:

U-8198 Pulse Transformer Shielded Assembly
MFG: Raytheon Mfg. Co. - Made in USA Quality
Four Windings, 100, 100, 50 and 50 Turns
Wire Size: All Windings 36 E
Connection: Solder Terminals - Hermetic Assembly
Size: 1.75 Diameter x 2.25 High [inches]
Weight: 82 [grams]

There will be NO shipping until Dec 20
Do NOT order if shipping delay is a problem!

Notes:

Unused Price: $30 each Five available
S/H included within continental US
