DC-DC Converter Burroughs VC-12-170-1 Power Supply 12 to 200 VDC Nixie Tube

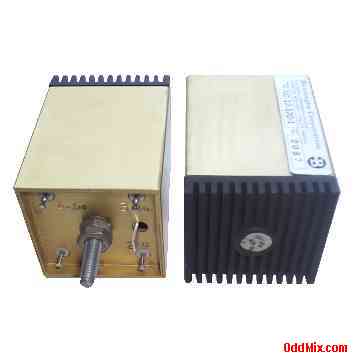

This is an unused, factory fresh genuine Burroughs VC-12-170-1 DC-DC Converter. It converts 12 Volt DC (Direct Current) to 200 Volt DC. It was made by the now defunct Burroughs Corporation Electronic Components Division around 1970. The converter is unused and it is in excellent working condition. The robust, excellent, two transistor design is totally enclosed. All components are within a strong, gold colored aluminum enclosure, with a black heat-sink on top. It has a single 10-32 screw for attachment. Excellent as a replacement, or for new projects it can be used especially well for old collectors type car radios as a plate voltage generator. This is a real hard to find vintage collector's choice item. Only one available.
Power Supply DC-DC Converter 12 to 200 VDC Nixie Tube Burroughs VC-12-170-1 [6 KB]

VC-12-170-1 DC-DC Converter
MFG: Burroughs Corporation EC Division
Useable to power vacuum or Nixie tubes
Input: 125% VDC, 300 mAmax
Output: 170 VDCmin, 30 mAmax Full Load
Output: 200 VDC No Load
Ripple: 4 Vpp max Full Load
Data sheet with schematic & App Note - included
Size: 1.635 W x 1.635 D x 2.843 H [inches]
Weight: 4 oz. nom. - Made in USA

Unused, excellent working condition
Price: $100 - Only one available
S/H included within continental US
