Westinghouse Electric ST 500 VAC FS Three Phase AC Voltmeter Analog Reference Info

This is a genuine Westinghouse Electric Three Phase AC voltmeter Type ST 500 V FS (Full Scale). When three phase 440 VAC service is available, this meter comes very handy to allow to inspect all phase voltages simultaneously. The robust design and dependable Westinghouse mechanical analog precision meter movements makes this instrument practically indestructible. Page is for reference only - Item is no longer available!

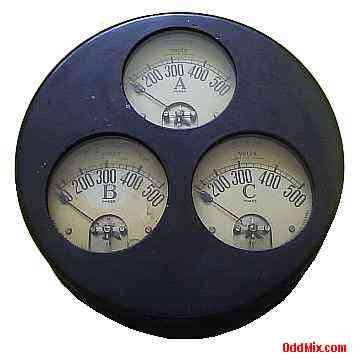

Westinghouse Electric ST 500 VAC FS Three Phase AC Voltmeter Analog Movements [12 KB]
REFERENCE PAGE - INFORMATION ONLY

Features:
• MFG: Westinghouse Electric & Mfg Company
• Meter Type ST - 3 Phase AC Volts
• Input Voltage: 500 Volts Max Full Scale
• SER: 1123131 - Style Number: 544469A
• 3 iron vane, analog Mechanical meter movements
• Movement windows: 2 1.2 Dia [in] each
• Six heavy brass terminals (2 for each meter)
• 7 1/2 Dia x 2 3/4 H [inches]
• Heavy duty construction
• Made in USA for AC Service

Notes:
No longer Available
Data For Reference Only
