Wire Wrap Panel Gold Silver Plated Thousand Plus Machined Connector Pins

These useable and historical collectible items are part of a multi-million dollar Burroughs mainframe computer. At the time - cca. 1970 - those large computing machines, that used to fill computer centers and entire buildings, were made by similar technologies. Using large, computer driven wire-wrap machines made the connections between multitudes of logic chips. The benefits compared to the standard PC technology was - among others - instant changeability and individual, custom made logic circuitry. These pieces are smaller sections of the original, large backplane PC board.

These pieces are just perfect for prototyping and circuit development on superbly made, sturdy, 3 mm thick PC boards. Each piece has two sections with 30 IC connectors with 18 pins each. All totals over 1,100 - silver plated, "Augat" style machined pins, with gold plated inserts. Each pin is made to accomodate a triple level "modified" wire wrap connections. In addition, these double sections have either four or six 26 pin connector sections with gold plated posts. The one inch long posts can have a triple wrap on the bottom and a double wrap on top. All 1.100 plus pins, and 104 or 156 posts, can be removed and used to construct other special size LSI connectors as required. First come first serve.

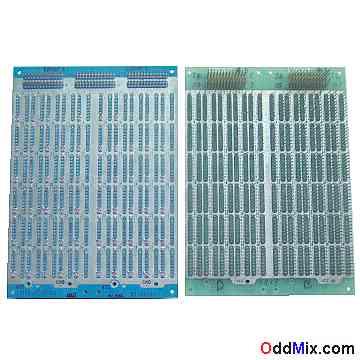

Two Wire-wrap panel sections with Augat machined connector pins [15 KB]
SPECIAL HISTORICAL COLLECTIBLE ITEM

Features:

Wire Wrap Panels - Double wide section
• MFG: Burroughs Corp.
• 1,134 Silver plated pins - 0.8 x 0.8 x 18 [mm]
• 104 or 156 Gold plated posts - 0.8 x 0.8 x 25.2 [mm]
• Size: 136 x 150 [mm] - Weight: 280 [gram]
• High quality fiberglass board 3 [mm] thick

Notes:

• Each piece is part of original Burroughs mainframe
• Price: $60 each - Four available
S/H included within continental US
