OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC Permanent Magnet PM Low Voltage High Torque Assembly Brass Gear

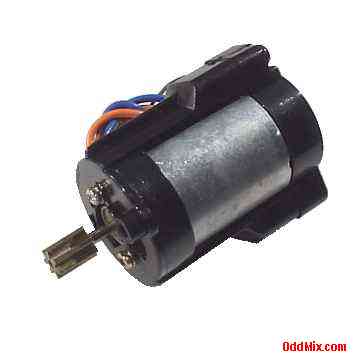

This is a PM [Permanent Magnet], high torque DC motor assembly with an attached brass gear. This motor was made for a paper shredder but appears to be excellently suited for model railroad, car or a boat applications. The two millimeter diameter shaft has a seven toothed attached brass gear. The motor begins to rotate at 2.5 Volt while pulls a no load current around 0.3 Amperes. First come first serve. Only one available.
Motor DC Permanent Magnet PM Low Voltage High Torque Assembly Brass Gear [7 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Motor DC Miniature PM High Torque
Motor begins to rotate: 1.5VDC
Motor current: approx. 0.3 Amp DC
Motor resistance: 10 Ohms - approx.
Plastic cover, 2 filter capacitors
Bronze sleeve bearings
Solder terminals wires attached
7 tooth brass gear attached to shaft
Size: 28 Dia, 67 L with gear [mm]
Shaft Size: 2 mm Dia, 15 L [mm]
Weight: 92 Grams

Notes:

Used Price: $15 One available
S/H included within continental US
