OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC Johnson 62022 PM Permanent Magnet High Torque Sleeve Bearings Precision

This is a precisely made, PM Permanent Magnet, high torque DC motor with two push-on terminals. Motor is made by Johnson. The three millimeter diameter shaft is eighteen millimeters long. Motor begins to rotate at 1.5 Volt while no-load current is around 0.4 Amperes. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a simple generator with a small windmill or some other great science project. First come first serve only one available.

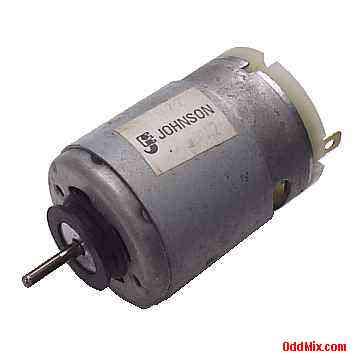

Johnson 62022 PM Permanent Magnet Precision High Torque DC Motor [8 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

DC Motor High Torque Permanent Magnet PM
MFR: Johnson - 62022
Motor begins to rotate: 1.5 VDC
Motor current: approx. 0.4 Amp
Motor resistance: 1 Ohm - approx.
Permanent magnets Sleeve bearings
Molex like Push-on terminals
Size: 37 Dia, 75 L [mm] with shaft
Shaft size: 3 dia, 18 L [mm]
Weight: 164 [grams]

Notes:

Used Price: $20 One available
S/H included within continental US
