Motor DC Johnson 65790 PM Permanent Magnet Bronze Bearing Belt Gear Precision

This is a shielded, PM Permanent Magnet, high torque low Voltage DC motor that is used in the HP OfficeJet 600 and other printers. The 3.25 millimeter diameter shaft has an attached gear to drive cogged belts. Shaft is 12 mm long on the opposite end and also usable. Makes a good generator. Useful as a replacement motor or for a special project. Motor begins to rotate at 1.5 Volt, while it's no-load current is around 0.05 Amperes. Additional numbers on motor: C3801-60005. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a simple voltage generator with a small windmill or some other great science project. First come first serve. Only one available.

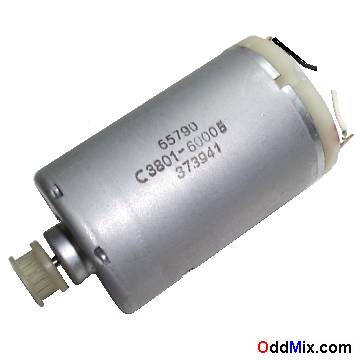

Motor DC PM Permanent Magnet Bronze Bearing Belt Gear Precision Johnson 65790 [11 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

PM Permanent Magnet DC Motor - 65790
MFR: Johnson - used in HP OfficeJet 600 printer
Permanent magnets Sleeve bearings
Solder terminals with wires and connector
Belt Gear attached
Motor begins to rotate: 1.5 VDC
Motor current: approx. 50 mAmp
Size: 37 Dia, 85 L [mm] (with shaft)
Shaft size: 3.25 mm dia
Pulley Size: 10 mm dia, 8 Wide [mm]
Weight: 220 Grams

Notes:

Used Price: $30 One available
S/H included within continental US
