OddMix IconOddMix ELECTRIC MOTOR DC PM

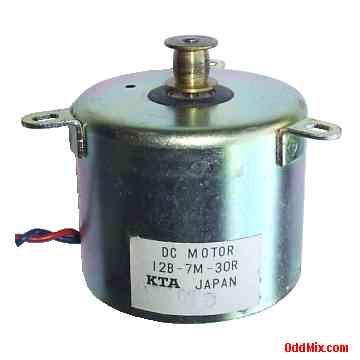

Motor DC KTA 128-7M-30R PM Shielded Precison Audio Player Replacement Brass Pulley

This is a precision, miniature, fully shielded PM [Permanent Magnet], made in Japan quality, DC motor with an attached brass pulley that is made for flat belt. The motor begins to rotate around 1-1.5 Volt while it's no-load current is around 10-30 mA [milli-Amperes]. This motor was made for a magnetic media player thus it runs super quiet with very low power. Motor rotates CW (Clock-Wise) and has two attached wire terminals. It makes a nice continuous driver, a generator with a small windmill or some other great science or show and tell project. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only one available.
KTA 128-7M-30R Motor DC PM Shielded Precison Audio Player Replacement Brass Pulley [8 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

KTA 128-7M-30R PM DC Motor
• MFR: Mabuchi Electric Co.
• Motor rotates CW [Clock-Wise]
• Motor begins to rotate: 1-1.5 VDC
• Motor current: 20-30 mAmp no load approx.
• Magnetic and static shield
• Brass pulley 7 [mm] Dia
• Integral Wire terminals
• Size: 44 Dia, 48 L with shaft [mm]
• Weight: 190 Grams
• Shaft size: 225 mm Dia, 11 L [mm]

Notes:

• Used • Price: $40 • One available
S/H included within continental US
