OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC Matshushita MHX-5AXXXP 6V Shielded PM Audio Player Replacement

This is a good quality, made in Japan, miniature, shielded, precision, Permanent Magnet (PM) DC motor with bronze bearings. The motor made to operate at 6 Volt, it's preferred rotation is CW [Clock Wise]. The MHX-5AXXXP runs quiet, and with very low power. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion, pure sine-wave generator, a power generator with a small windmill or some other great science project. First come first serve. Only one available.

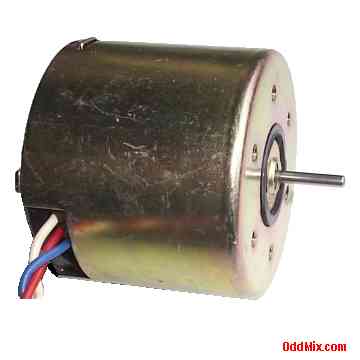

Matshushita MHX-5AXXXP Motor DC 6V Shielded PM Audio Player Replacement [7 KB]

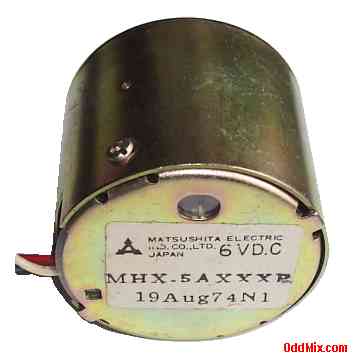

Matshushita MHX-5AXXXP Motor DC 6V Shielded PM Audio Player Replacement Bottom [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

MHX-5AXXXP 6 V DC PM Motor
MFR: Matshushita Electric Co. Ltd.
Magnetic and static shield
Bronze sleeve bearings
Voltage: 6 VDC Connection: three wires
Size: 39.5 Dia, 45.5 L with shaft [mm]
Shaft size: 2 mm Dia, 12 L [mm]
Weight: 100 Grams

Notes:

Used Price: $50 One available
S/H included within continental US
