Motor DC Matshushita MMI-6A6MK3 Shielded Miniature PM Audio Player Replacement

This is a precisely made, miniature, shielded, Permanent Magnet [PM] DC motor with bronze bearings and a plastic pulley. The motor begins to rotate at 2.5 Volt, whike it's no-load current is around 20-30 mA (milliamperes). It runs quiet, with very low power and rotates in a CW (Counter Clockwise) direction. This motor is able to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion, pure sine-wave generator, a power generator with a small windmill or some other great science project. First come first serve. Only one available.

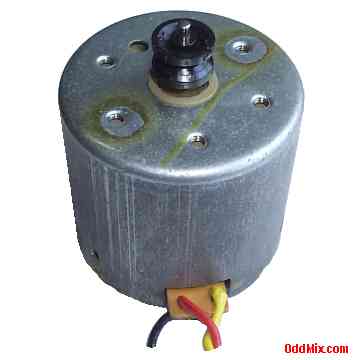

Matshushita MMI-6A6MK3 Motor DC Shielded PM Miniature Bronze Bearings Pulley [8 KB]

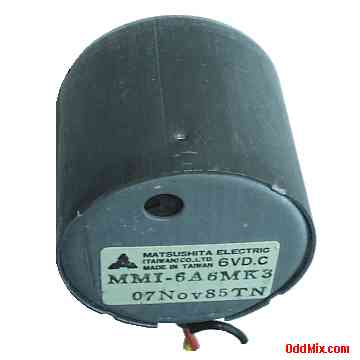

Matshushita MMI-6A6MK3 Motor DC Shielded PM Miniature Bronze Bearings Pulley Bottom [7 KB]


MMI-6A6MK3 - 6 VDC PM Motor
MFR: Matshushita Ind. Co. Ltd.
Magnetic and static shield
Bronze sleeve bearings - Plastic pulley
Connection: Two soldered terminals with wire
Size: 39.5 Dia, 46.5 L with shaft [mm]
Shaft size: 2 mm Dia, 12 L [mm]
Weight: 100 Grams


Used, excellent working condition
Price: $30 - Only one available
S/H included within continental US
