Motor DC MCA9B 1 575 576 - 60310-A PM Pulley Cassette Loader PC Board Connector

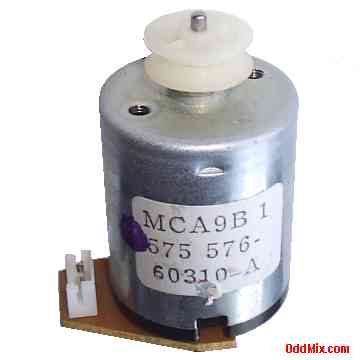

This is a precisely made, miniature, PM (Permanent Magnet) motor with an attached pulley. The motor begins to rotate around 2-2.5 Volt, while it's no-load current is around 20-30 mA [milli-Amperes]. It runs quiet, and with low power. Motor rotates CW (Clock-Wise) and has attached PC board with a two pin connector terminals. It is an exact replacement for VHS cassette loaders, makes a good generator with a small windmill or some other great science or show and tell project. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only one available.
Features: • MCA9B 1 575 576- 60310-A PM DC Motor • Motor rotates CW [Clock-Wise] • Motor begins to rotate: 2-2.5 VDC • Motor current: 20-30 mAmp no load approx. • Magnetic and static shield • PC board with 2 pin connector • PC board number SP-13 • Size: 25.5 Dia, 45 L with shaft [mm] • Shaft size: 2 mm Dia, 9 L [mm] • Pulley size: 13.5 [mm] Dia • Weight: 53 [Grams] Notes: • Unused • Price: $25 • One available • S/H included within continental US |
• Only one item available unless otherwise indicated • Click the credit card pictures left to order • • E-Mails always answered unless return e-mail is blocked |
