Motor DC MCA9B 5 -557736 41019-A PM Pulley Cassette Loader PC Board Connector

This is a precisely made, miniature, PM (Permanent Magnet) motor with an attached pulley. The motor begins to rotate around 2-2.5 Volt, while it's no-load current is around 20-30 mA [milli-Amperes]. It runs quiet, and with low power. Motor rotates CW (Clock-Wise) and has attached PC board with a three pin connector terminals. It is an exact replacement for VHS cassette loaders, makes a good generator with a small windmill or some other great science or show and tell project. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only one available.

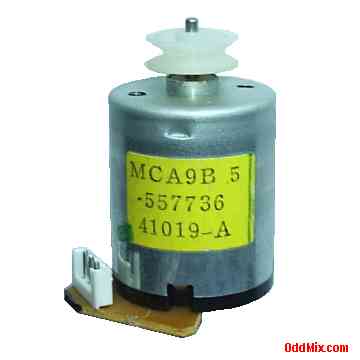

MCA9B 5 -557736 41019-A Motor PM DC Pulley VHS Cassette Loader PC Board Connector [7 KB]


MCA9B 5 -557736 41019-A PM DC Motor
Motor rotates CW [Clock-Wise]
Motor begins to rotate: 2-2.5 VDC
Motor current: 20-30 mAmp no load approx.
Magnetic and static shield
PC board with 3 pin connector
PC board numbers: YG-437F M-86 94V
Size: 25.5 Dia, 45 L with shaft [mm]
Shaft size: 2 mm Dia, 9 L [mm]
Pulley size: 14 [mm] Dia
Weight: 54 [Grams]


Unused Price: $25 One available
S/H included within continental US
