OddMix IconOddMix ELECTRIC MOTOR DC

Motor DC Nidec 0522-6CCK-02 P/N54148-003 Hard Disk Precision Platter Driver

This is a precisely made, miniature, DC motor with an attached connector that is made to drive a computer hard drive multiple platter assembly. This fully shielded motor runs super quiet, and with very low power, but it requires a driver IC or circuitry. This motor has seven wires and they are attached to an eight pin, keyed, connector terminal. This motor is great for data recovery work or some science or show-and-tell project. First come first serve. Only one available.

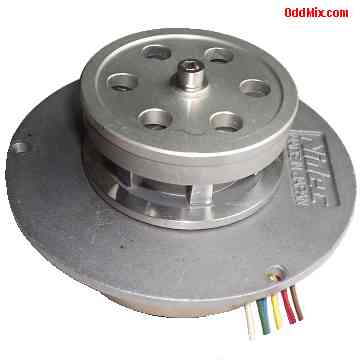

Nidec 0522-6CCK-02 P/N54148-003 Motor DC Hard Disk Precision Platter Driver [8 KB]

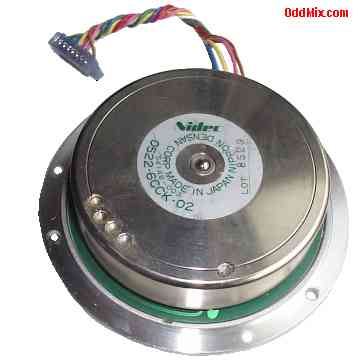

Nidec 0522-6CCK-02 P/N54148-003 Motor DC Hard Disk Precision Platter Driver Back [10 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

0522-6CCK-02 P/N54148-003 DC Motor Hard Disk
MFR: Nippon Densan Corp
Magnetic and static shield
Made in Japan Quality
Ball bearings
7 wire terminals with connector
8 pin keyed connector
Excellent for data recovery work
Size: 92 Dia faceplate, 71 Dia rotor, 54 L [mm]
Size of hub: 40 [mm] Dia 11 mm wide
Weight: 448 Grams

Notes:

Used, excellent working condition
Price: $30 - Only one available
S/H included within continental US
