OddMix IconOddMix ELECTRIC MOTOR DC PM

Motor DC Nippon Audio NAM-5F PM 13.2V DC 2400RPM CW Precision Miniature Pulley

This is a precisely made, miniature, PM (Permanent Magnet), 13.2 Volt DC motor with an attached pulley. The motor runs super quiet, and with very low power. This fully shielded motor rotates CW (Clock-Wise) and has attached shielded wire terminals. It makes a nice continuous driver, a generator with a small windmill or some other great science or show and tell project. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only one available.

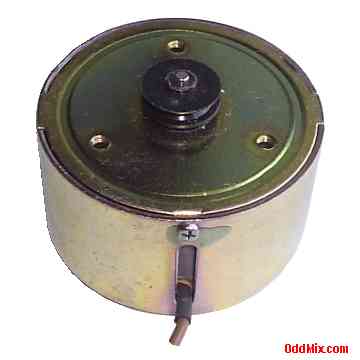

Nippon Audio NAM-5F Motor DC PM 13.2V DC 2400RPM CW Precision Miniature Pulley [8 KB]

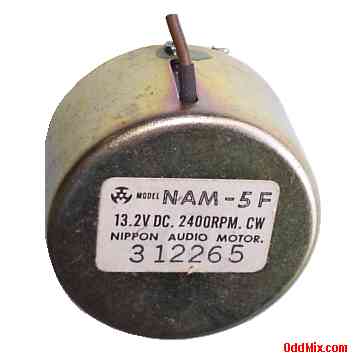

Nippon Audio NAM-5F Motor DC PM 13.2V DC 2400RPM CW Precision Miniature Pulley Back [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

NAM-5F - 13.2V DC 2400 RPM Motor
MFR: Nippon Audio Motor
Motor rotates CW [Clock-Wise]
Motor voltage: 13.2 VDC
Magnetic and static shield
Brass bearings - Plastic pulley 11 [mm] Dia
Integral Shilded wire terminals
Size: 45 Dia, 29 L with shaft [mm]
Weight: 88 Grams with leads
Shaft size: 2 mm Dia, 5 L [mm]

Notes:

Used, excellent working condition
Price: $30 - Only one available
S/H included within continental US
