OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC R-S 225 811207 03A PM Shielded Precision Brass Pulley Replacement Part

This is a well made (possibly by Matsushita), precision low voltage DC motor, R-S 225 811207 03A. The 2 millimeter diameter shaft has an attached brass pulley. The two terminal motor begins to rotate at 1.5 Volt, while it's no-load current is around 0.20 - 0.30 Amperes. This motor is capable to drive many different loads smoothly and with a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve. Only one available.

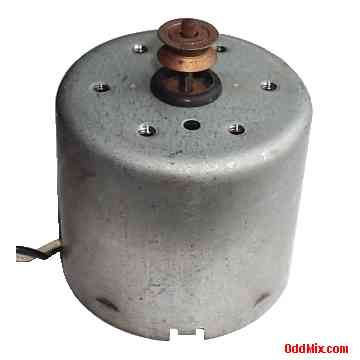

R-S 225 811207 03A Motor DC PM Shielded Precision Brass Pulley Replacement Part [7 KB]

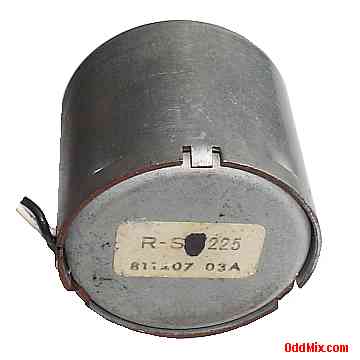

R-S 225 811207 03A Motor DC PM Shielded Precision Brass Pulley Replacement Part Back [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

R-S 225 811207 03A - Precision DC Motor
• MFR: Possibly Matsushita
• Attached brass pulley
• Replacement part for audio players
• Motor begins to rotate: 1.5 VDC no load
• Motor current: approx. 20 - 30 mAmp no load
• Two attached wires connection
• Brass sleeve bearings
• Six holes for front face mount
• Shaft size: 2 dia [mm]
• Pulley Size: 9 dia (external), 11.5 L [mm]
• Size: 40 Dia, 47.5 L [mm]
• Weight: 131 Grams

Notes:

• Used, excellent working condition
• Price: $30 - Only one available
S/H included within continental US
