OddMix IconOddMix ELECTRIC MOTOR - DC PM

Motor DC Reluctor Magnetic Speed Detector PM Servo Assembly Computer Control

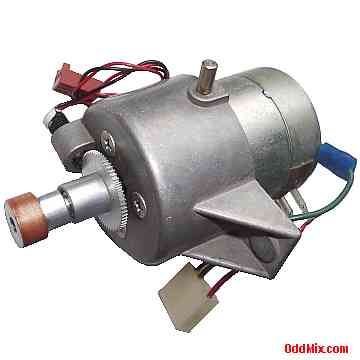

This is a precisely made, high quality, ball bearing, PM [Permanent Magnet] DC motor with an attached 62 tooth gear for the adjustable reluctance sensor coil assembly with its separate three pin connector and a four pin, keyed, DC power line connector terminal. The four millimeter diameter shaft is twenty five millimeters long. Motor begins to rotate at around 1 Volt, while it's no-load current is around 20 - 40 mA [miliAmperes]. This is an easily controllable motor that is made to be used in a servo system under complete feedback and computer control. With a small PM or stepping motor and a rubber band as a belt it would make a classy but simple precision, low distortion sine-wave generator, a nice generator with a small windmill or some other great science project. First come first serve only one available.
Reluctor Magnetic Speed Detector PM DC Servo Motor Assembly Computer Control [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Reluctor Speed Detector PM DC Servo Motor Assy
• Reluctor speed detector attached
• Motor begins to rotate: 1 VDC
• Motor current: 20 - 50 mA [miliAmperes] - approx.
• Permanent magnets • Ball bearings
• Four pin connector, keyed - 3 wire
• Assembly Size: 68.5, 76, 91.5 L [mm]
• Motor Size: 40 Dia, 91.5 L [mm]
• Shaft size: 4 dia, 25 L [mm]
• Weight: 315 [grams] - whole assembly

Notes:

• Unused • Price: $80 • One available
S/H included within continental US
