Motor DC Sankyo E9720A P/N288P CP-F VCR Capstan Driver Integrated Multi-Phase PCB Assy

This is a precisely made, muli-phase, Permanent Magnet (PM), VCR capstan driver DC motor with a pulley and sleeve bearings. The motor is mounted on a metal faceplate. Motor driver IC is the Matsushita M51782ASP multiphase driver chip. It runs super quiet, and with very low power. It is a fine replacement part or it makes a nice science or show-and-tell project. First come first serve. Only one available.
Sankyo E9720A P/N288P CP-F Motor DC Capstan Driver Integrated Multi-Phase PCB Assy [7 KB]

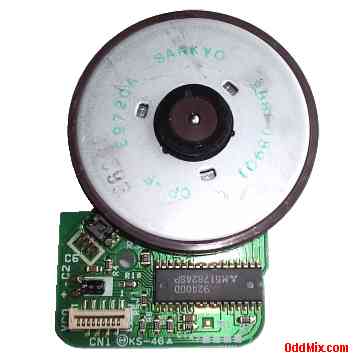

Sankyo E9720A P/N288P CP-F Motor DC Capstan Driver Integrated Multi-Phase PCB Assy Back [11 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

E9720A P/N288P CP-F - DC Motor
MFR: Sankyo Electric Co.
PCB Number: H KS-41
Integrated PC board motor
Matsushita M51782ASP multiphase driver chip
Motor is mounted on metal face plate
Sleeve bearings
Video tape capstain driver VCR assembly
9 Pin connector terminals - PCB attached
Attached 19.5 Dia pulley
Size motor: 68 Dia, 59.5 H [mm] - with shaft
Size overall: 70 W, 91.5 L, 59.5 H [mm] - with shaft
Shaft size: 3.5 mm Dia, 39 L [mm]
Weight: 177 Grams - assembly

Notes:

Used, excellent working condition
Price: $25 - Only one available
S/H included within continental US
