OddMix IconOddMix ELECTRIC MOTOR - DC

Motor DC Sankyo 5578762 LLN4B Assembly Pulley Bronze Bearings Tachometer PCB Assy

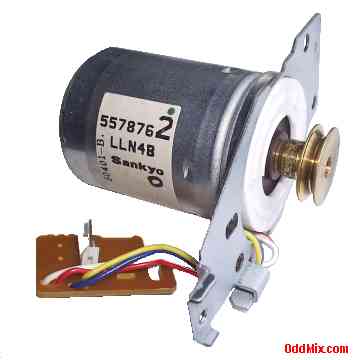

This is a precisely made, miniature, fully shielded, Permanent Magnet (PM), DC motor with a dual brass pulley and bronze bearings. The motor is mounted on a metal faceplate and rotates CCW [Counter Clock Wise]. Load current is around 30-40 mA [milliAmperes] DC. It runs super quiet with very low power. The tachometer winding provides RPM information to allow very precise rotational speed control and it would make a classy but simple precision, low distortion sine-wave generator. First come first serve. Only one available.
Sankyo 5578762 LLN4B Motor DC Assembly Pulley Bronze Bearings Tachometer PCB Assy [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

5578762 LLN4B - DC Motor Miniature
MFR: Sankyo Electric Co.
Bronze sleeve bearings - Dual brass pulley
Motor is mounted on metal face plate
5 Pin connector terminals PC board attached
Size: 38 Dia, 65 L [mm] with pulley
Shaft size: 3 mm Dia, 11 L [mm]
Weight: 210 Grams - assembly

Notes:

Used Price: $30 One available
S/H included within continental US
