Motor DC SCSBT FH5Z-070701 Magnetic Disc Driver Integrated Multi-Phase PCB Assy

This is a precisely made, muliphase, Permanent Magnet (PM), magnetic media disc driver DC motor. The motor is mounted on a metal faceplate. Motor driver IC is the Matsushita M51785P multiphase driver chip. It runs super quiet with very low power. It is a fine replacement part or it makes a nice science or show-and-tell project. First come first serve. Only one available.
SCSBT FH5Z-070701 Motor DC Magnetic Disc Driver Integrated Multi-Phase PCB Assy [6 KB]

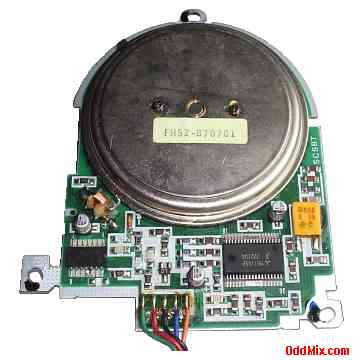

SCSBT FH5Z-070701 Motor DC Magnetic Disc Driver Integrated Multi-Phase PCB Assy Back [16 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

FH5Z-070701 - DC Motor
• MFR: SCSBT Electric Co.
• PCB Number: SCSBT
Integrated PC board motor
Matsushita M51785P multiphase driver chip
• Motor is mounted on metal face plate
• 5 Colored wire connection
• 5 Pin connector terminals
• Attached 21.5 Dia disc
• Size rotor: 62.5 Dia, 20.5 H [mm] - with shaft
• Size overall: 79.5 W, 91.5 L, 20.5 H [mm] - with shaft
• Shaft size: 4 mm Dia, 22 L [mm]
• Weight: 176 Grams - assembly

Notes:

• Used, excellent working condition
• Price: $15 - Only one available
S/H included within continental US
