OddMix IconOddMix ELECTRIC MOTOR DC

Motor DC Shinano YG-437F 94V-0 Toshiba 6R020021 Floppy Disk Driver Multi-Phase

This is a high quality, precisely made in Japan, flat, 300 RPM, 12VDC, DC motor with a 4 pin connector that is made to drive a computer floppy drive. This fully shielded, multiple phase, pancake motor runs super quiet, and with very low power DC voltages, the driver IC and circuitry is on the PCB. This motor is great for a repair part, data recovery work or some science or show-and-tell project. First come first serve. Only one available.

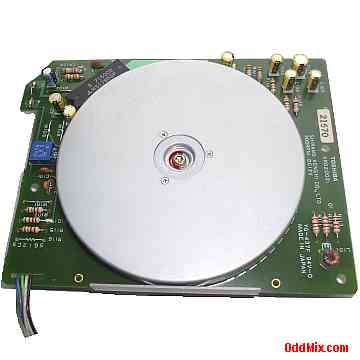

Shinano YG-437F 94V-0 Toshiba 6R020021 Motor DC Floppy Disk Driver Multi-Phase [13 KB]

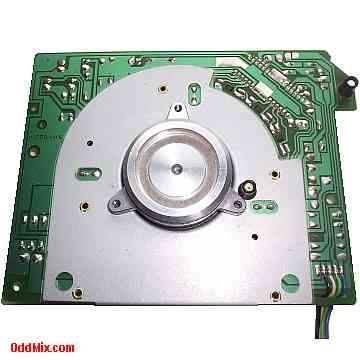

Shinano YG-437F 94V-0 Toshiba 6R020021 Motor DC Floppy Disk Driver Multi-Phase Back [9 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Floppy Disk Drive DC Motor
Shinano Type: YG-437F
Toshiba Number: 6R020021
300 RPM - 12 VDC
MFR: Shinano Kenshi Co., LTD
Made for Toshiba
Magnetic and static shield
Excellent quality - Made in Japan
Aluminum Hub 37 [mm] Dia, 28.5 internal dia, 5 mm wide
4 wire terminals and 4 pin connector
Excellent for data recovery work
Driver IC and circuitry is on PCB
Great for science or show-and-tell project
Motor size: 90 Dia, 22 D [mm]
Rotor size: 88.5 Dia, 20 D [mm]
PCB size: 127 L, 98 W, 20 D [mm]
Weight: 263 Grams - assembly

Notes:

Used, excellent working condition
Price: $15 - Only one available
S/H included within continental US
