OddMix IconOddMix ELECTRIC CLUTCH - DC

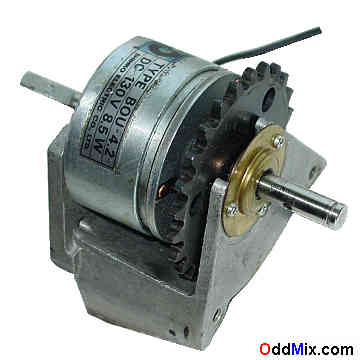

Clutch Electric Shinko Type BOU-4.2 DC High Torque 24T Sprocket Gear Assembly

This is a sturdy DC electric clutch power connect drive train assembly. The drive train is connected when the coil is energized and free-wheeling when power is off. The assembly includes two ball bearings in a cast aluminum housing, the 130 VDC 8.5 Watts Shinko Electric Co. made coil with an attached high grade 54 [mm] Outside Diameter 24 teeth sprocket wheel. First come first serve. Only one available.
Shinko Type BOU-4.8-21 DC Electric Clutch High Torque 24T Sprocket Gear Assembly [12 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

Shinko Type BOU-4.2 DC Electric Clutch
Rated voltage: 130 VDC - 8.5 [Watts]
54 Dia [mm] - 24T Sprocket gear attached
Size: 60 W, 62 L, 86 H [mm]
Shaft Size: 6 Dia, 86 L [mm]
Ball bearings - Assembly weight: 320 [Grams]

Notes:

Used, excellent condition - $40 - One available
S/H included within continental US
