OddMix IconOddMix ELECTRIC MOTOR DC

Motor DC STC Shinano DHL-313 P/N 65073-001 PM Hard Disk Precision Platter Driver

This is a high quality, made in Japan, precision, miniature, PM [Permanent Magnet] DC motor with an attached connector that is made to drive a computer hard drive platter assembly. This fully shielded motor runs super quiet, and with very low power, but it requires a driver IC or circuitry. This motor has three wires and a four pin connector terminal. This motor is great for data recovery work or some science or show-and-tell project. First come first serve. Only one available.

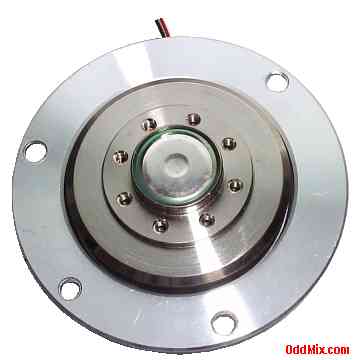

STC Shinano DHL-313 P/N 65073-001 Motor DC PM Hard Disk Precision Platter Driver [9 KB]

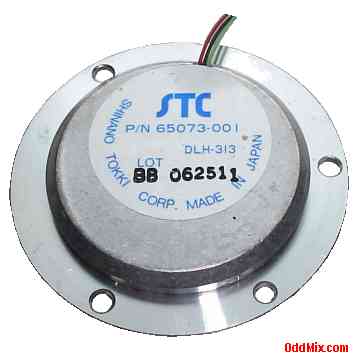

STC Shinano DHL-313 P/N 65073-001 Motor DC PM Hard Disk Precision Platter Driver Back [10 KB]
SPECIAL DIFFICULT TO FIND ITEM

Features:

DHL-313 P/N 65073-001 Hard Disk DC Motor
MFR: STC Shinano Tokki Corp
Magnetic and static shield
Ball bearings
Aluminum Hub 40 [mm] Dia 18.5 mm wide
High quality - Made in Japan
3 wire motor
4 pin connector
Excellent for data recovery work
Overall Size: 57.5 Dia, 13.5 L [mm]
Rotor Size: 37.5 Dia, 13.5 L [mm]
Shaft Size: 15 Dia, 3 L [mm]
Weight: 63 Grams

Notes:

Used, excellent working condition
Price: $25 - 1 available
S/H included within continental US
